Saracen Mantra LSL Race
In stock
£2,799.99
£1,499.99
More from
Saracen Mantra LSL Race
- Product Details>
- The Brand>
- Specification>
- Sizing & Geometry>
- Delivery & Returns>
- Spare Parts Finder>
- Our range-topping Race model features a wish-list of kit, with zero corners cut and plenty to drool over.

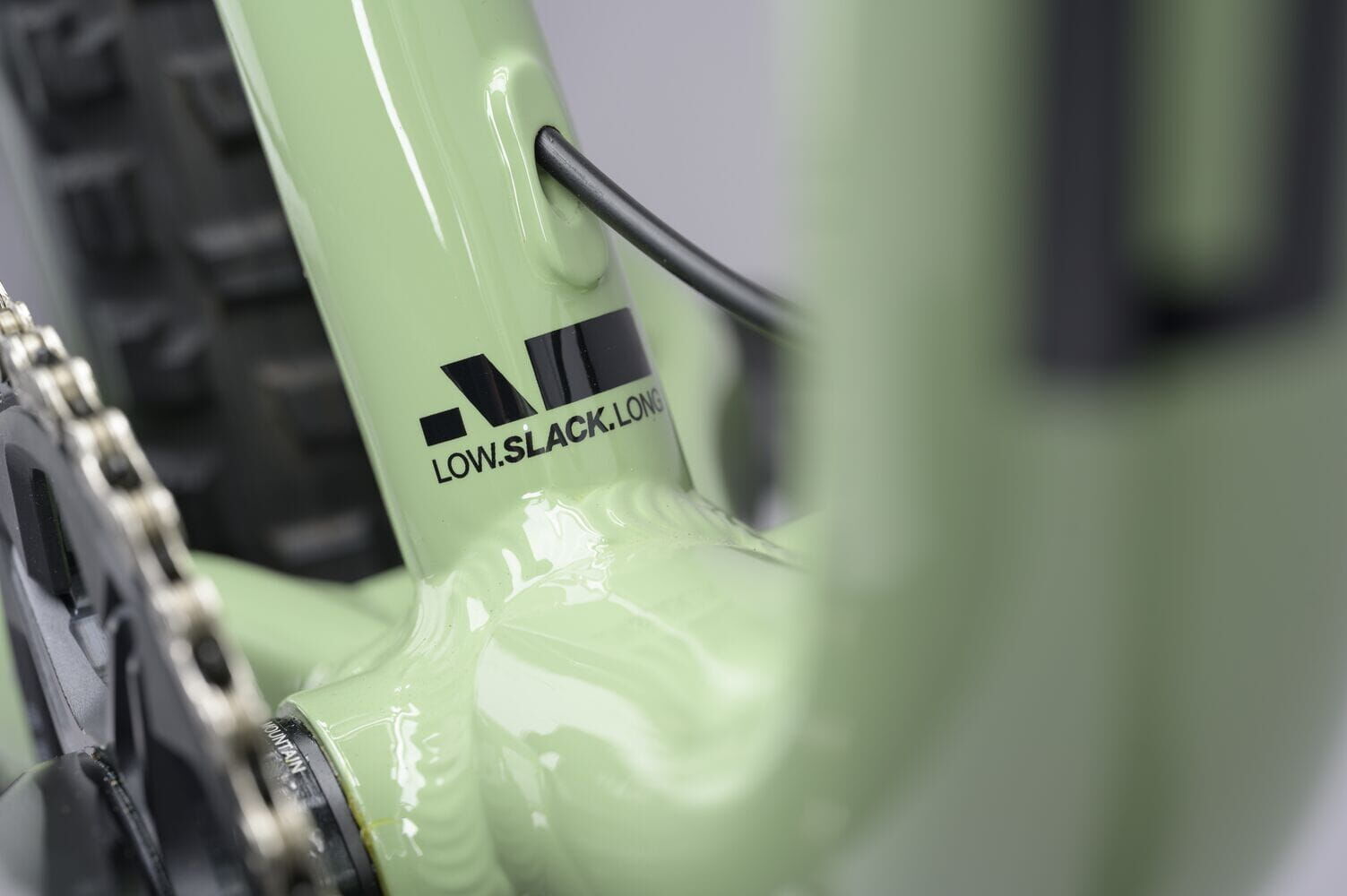

- The 6061 hydroformed and butted aluminium frame is matched to our tried-and-tested LSL geometry, making this hardtail ready for the rowdiest descents.

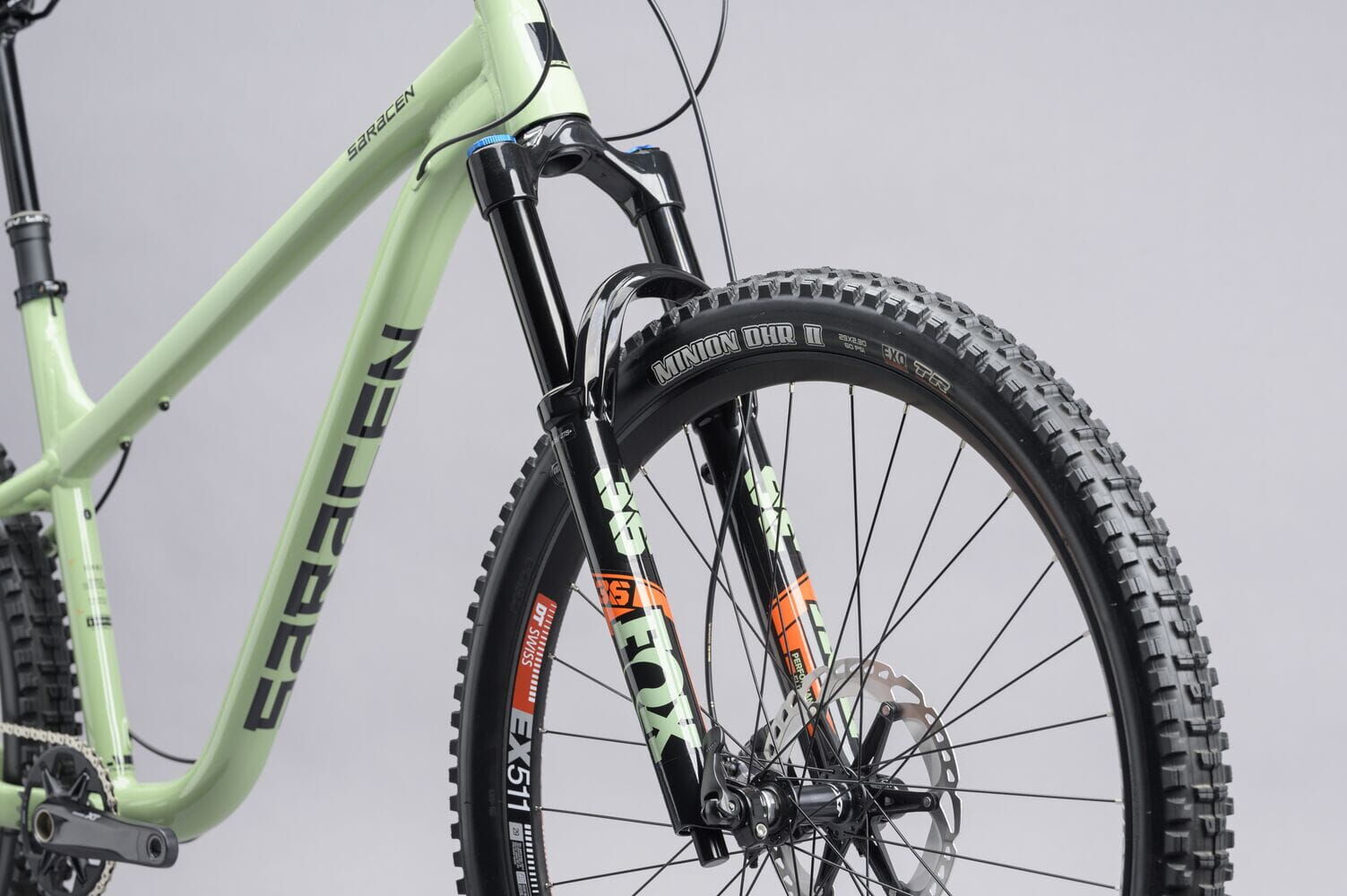

- The spec sheet begins with a Fox 36 Performance Elite fork providing 140mm of completely tunable, trail-taming travel.

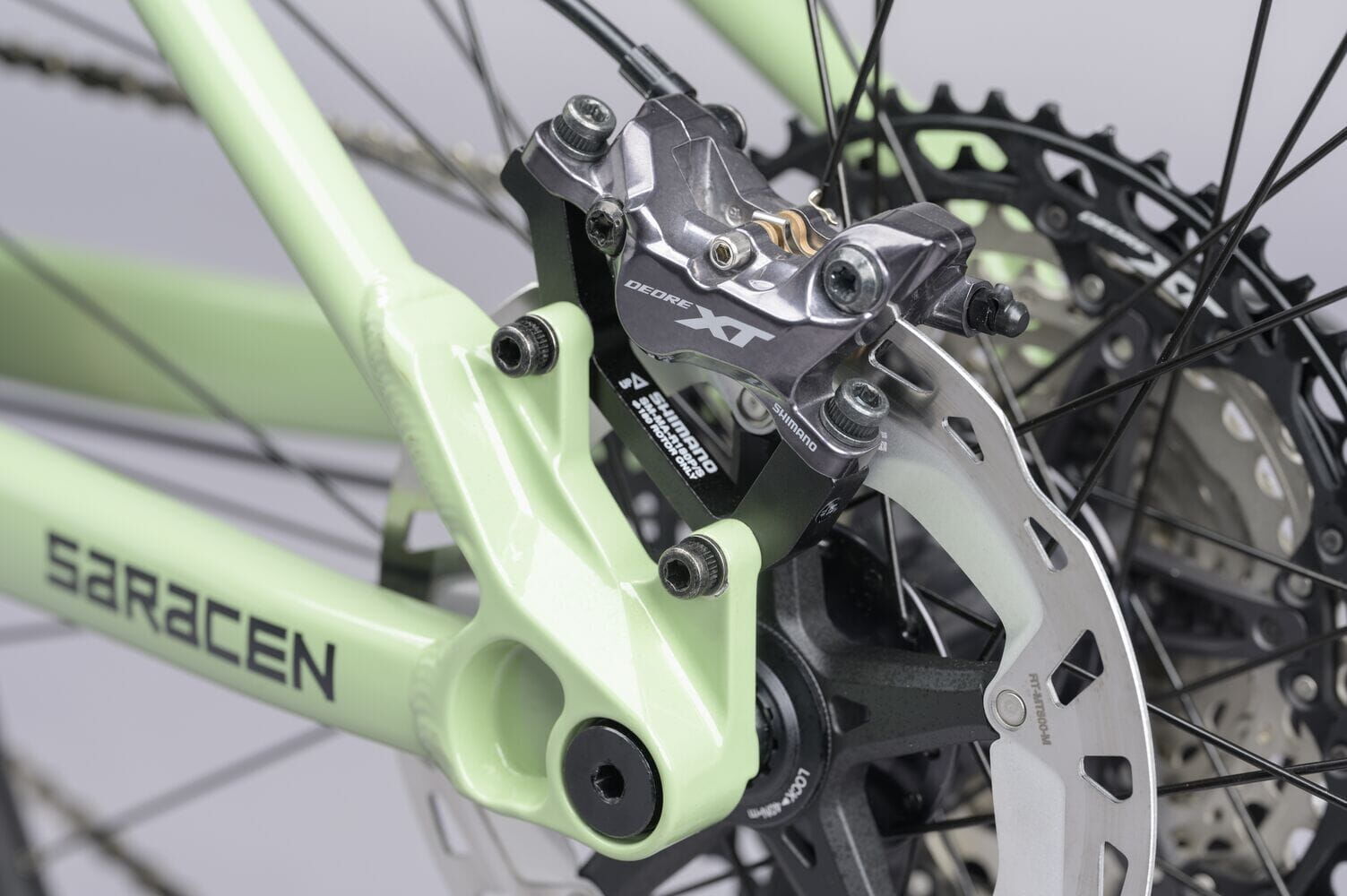

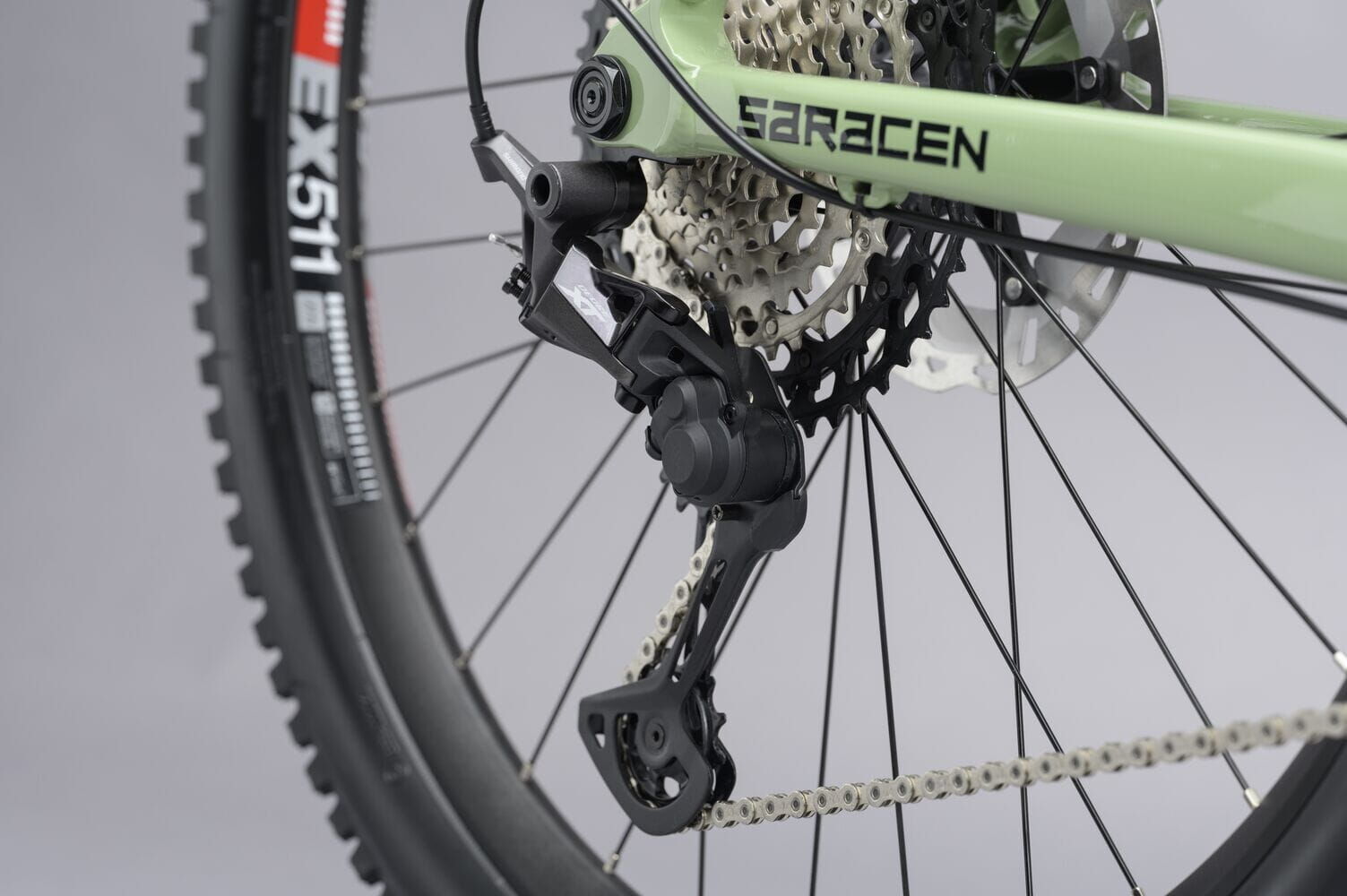

- That’s backed up by a Shimano XT groupset delivering fast, crisp shifting across a wide-range 10-51 tooth 12-speed cassette. You’ll also find Shimano XT brakes with four pistons for improved heat management and braking control on the longest descents.

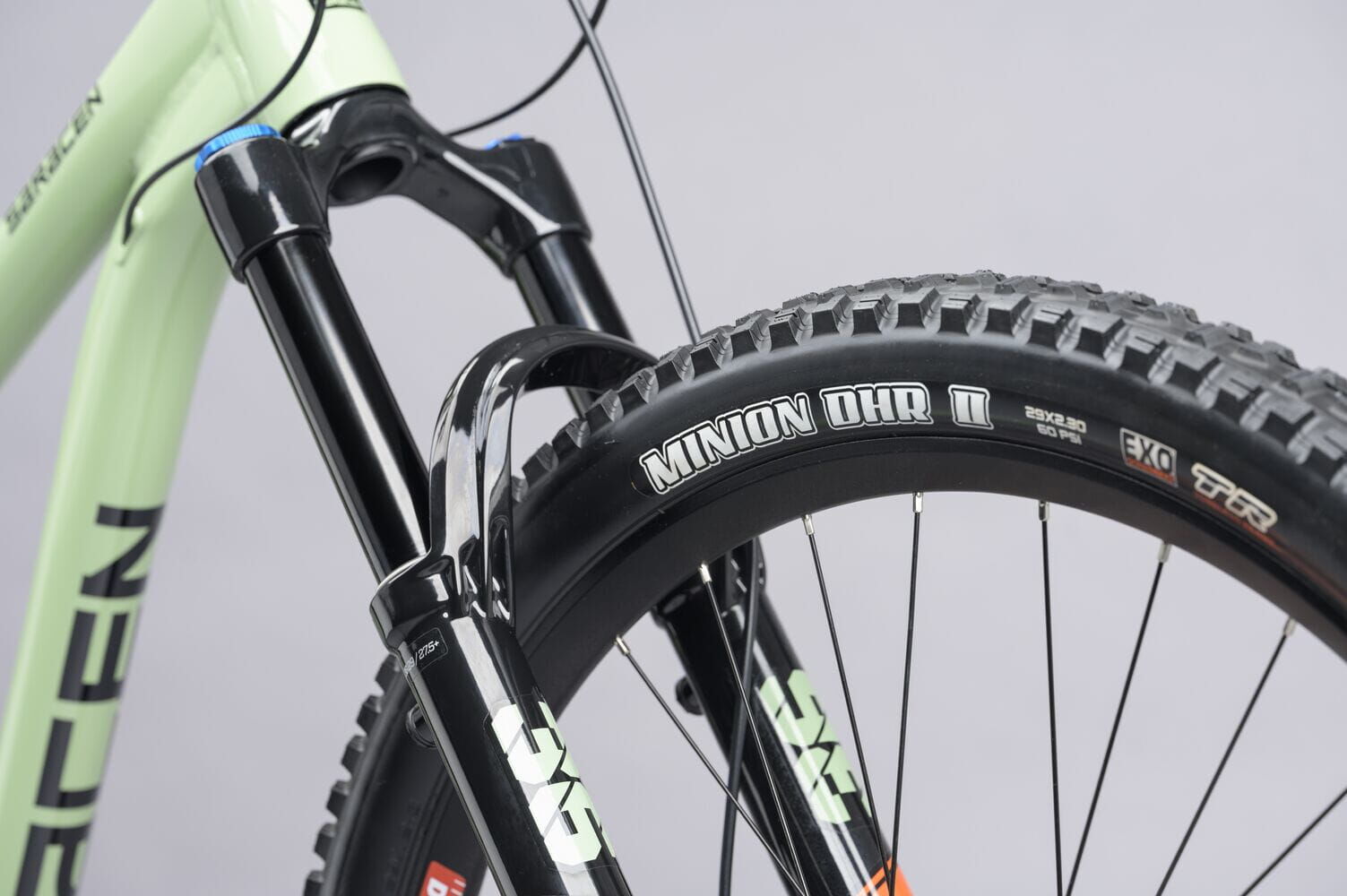

- A KS Lev Integra dropper is complemented by finishing kit from RaceFace and ODI, while DT Swiss provide their legendary EX511 rims matched to Maxxis Minion DHRII tyres.
- Best of all, the rims and tyres are tubeless ready — just add tape, valves and sealant to enjoy the full experience.
Please note - this bike does not come supplied with pedals. Choose some here!
Unleash the Race Model:
Prepare to be impressed by our top-of-the-line Race model, meticulously crafted with a dream kitthat leaves nothing to be desired. From its robust 6061 hydroformed and butted aluminum frame to its proven LSL geometry, this hardtail is primed to conquer the most aggressive descents with confidence and precision.
Trail-Ready Performance:
Leading the charge is the Fox 36 Performance Elite fork, offering 140mm of customizable travel to tame even the roughest trails with ease. Paired with a Shimano XT groupset, including a wide-range 10-51 tooth 12-speed cassette, the Race model delivers unparalleled shifting performance for seamless transitions across any terrain. Enhanced braking control is provided by Shimano XT four-piston brakes, ensuring reliable stopping power on the longest descents.
Premium Components, Unmatched Experience:
Experience ultimate versatility and control with the KS Lev Integra dropper post and top-notch finishing kit from RaceFace and ODI. DT Swiss EX511 rims, coupled with Maxxis Minion DHRII tires, offer exceptional traction and durability, while the tubeless-ready design allows for hassle-free setup and enhanced performance on every ride. With the Race model, you'll enjoy the full spectrum of off-road adventure without compromise.
Brake Levers :

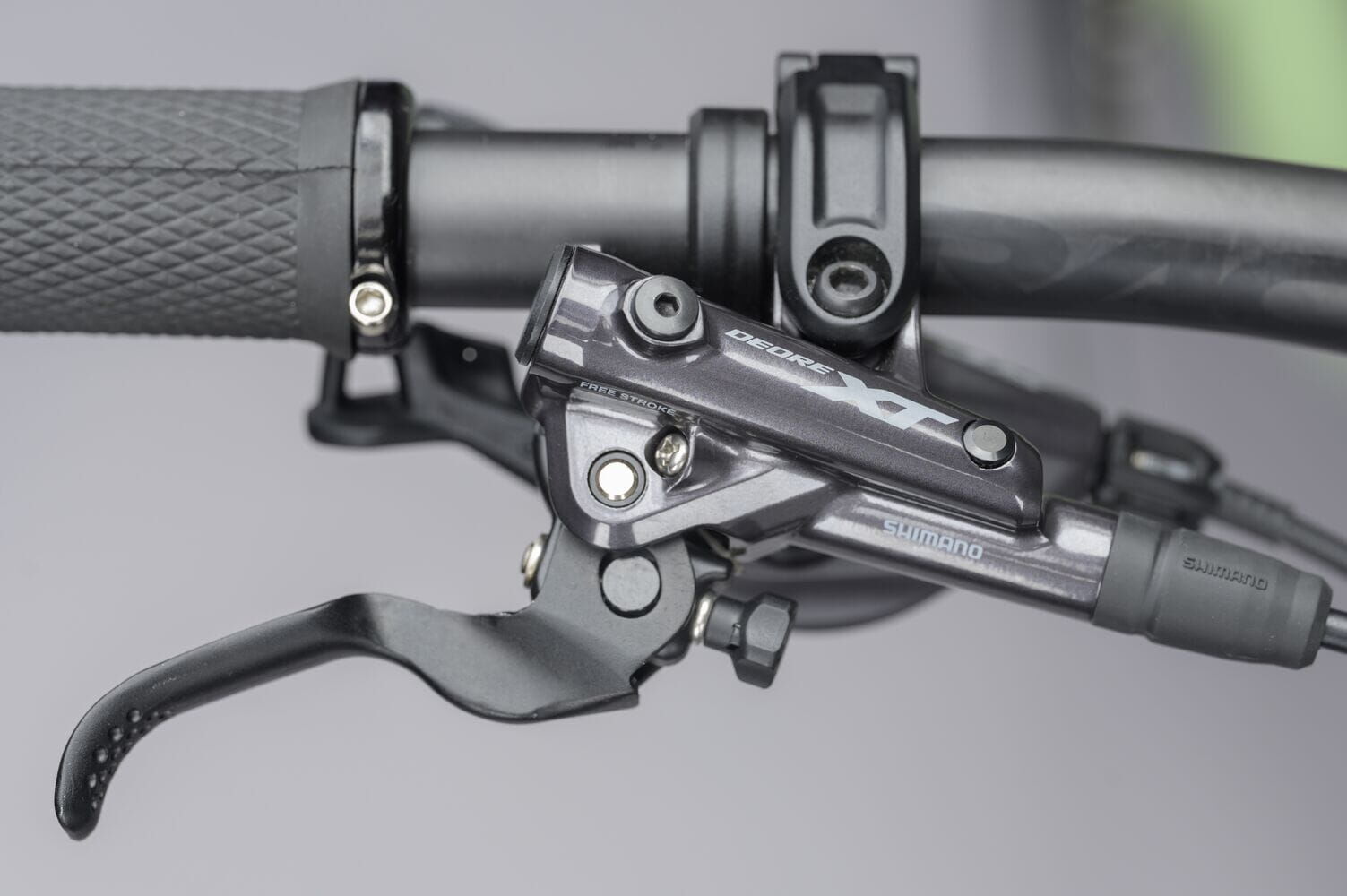

Shimano XT M8100
Brakes :
Shimano XT M8120
Cassette Freewheel :
Shimano XT M8100 / 12-speed / 10-51T
Chain :
KMC X12
Chain Set :
Shimano XT FC-M8120 / 32T / 170mm
Grip Tape :
ODI Elite Motion
Handlebars :
Raceface Next R Carbon 35 / 780mm / 35mm
Headset :
Prestine PT-F13
Hubs :
Shimano XT M8100 Boost 15x110 32H Front / Shimano XT M8110-B 12x148 32H Rear
Rear Derailleur :
Shimano XT M8100 / 12-speed
Rims :
DT Swiss EX511 / 32H / 29 Front / 27.5" Rear"
Saddle :
Saracen Custom CrMo MTB
Seat Post :
KS Lev Integra / 150mm travel (125mm On Size Small) / 30.9mm
Shifters :
Shimano XT M8100 / 1 x 12-speed
Spokes :
Double Butted Stainless Steel
Stem :
Raceface Turbine 35 / 50mm
Tyres :
Maxxis Minion DHRII / EXO / TR / 29 X 2.3? Front / 27.5 X 2.3? Rear
Wheel Size :
27.5 inch, 29 inch
Fork :
Fox 36 Performance Elite/ 140mm Travel / 15 X 110mm
Frame Material :
Alloy
Brake Type :
Hydraulic Disc
154
156
158
160
162
164
166
168
170
172
174
176
178
180
182
184
186
188
190
192
194
196
SMALL
- 154cm to 172cm
MEDIUM
- 170cm to 180cm
LARGE
- 178cm to 186cm
X-LARGE
- 184cm to 196cm
| Frame Size | SMALL | MEDIUM | LARGE | X-LARGE |
|---|---|---|---|---|

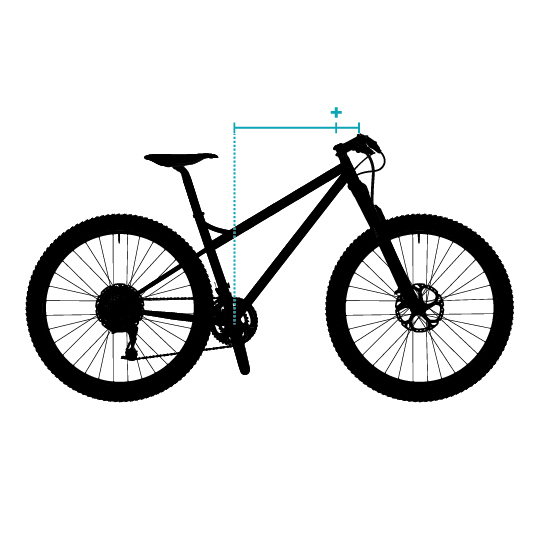

| Stem Length plus Reach | 490 cm | 515 cm | 540 cm | 560 cm |
| Frame Seat Tube | 360 cm | 410 cm | 460 cm | 510 cm |
| Frame Top Tube | 609 cm | 637 cm | 664 cm | 687 cm |
| Frame Reach | 440 cm | 465 cm | 490 cm | 510 cm |
| Frame Stack | 629 cm | 638 cm | 647 cm | 656 cm |
| Frame Head Tube | 95 cm | 105 cm | 115 cm | 125 cm |
| Frame Head Angle | 64° | 64° | 64° | 64° |
| Frame Seat Angle | 75° | 75° | 75° | 75° |
| Frame Chainstay | 440 cm | 440 cm | 440 cm | 440 cm |
| Frame BB Drop | 45 cm | 45 cm | 45 cm | 45 cm |
| Frame Wheel Base | 1201 cm | 1230 cm | 1260 cm | 1284 cm |
| Fork Offset | ||||
| Fork Travel | 140 cm | 140 cm | 140 cm | 140 cm |
| Standover | ||||
| Stem Length | 50 cm | 50 cm | 50 cm | 50 cm |
| Handle Bar Width | 780 cm | 780 cm | 780 cm | 780 cm |
| Frame Size | SMALL | MEDIUM | LARGE | X-LARGE |
|---|---|---|---|---|
| Stem Length plus Reach | 490 | 515 | 540 | 560 |
| Frame Seat Tube | 360 | 410 | 460 | 510 |
| Frame Top Tube | 609 | 637 | 664 | 687 |
| Frame Reach | 440 | 465 | 490 | 510 |
| Frame Stack | 629 | 638 | 647 | 656 |
| Frame Head Tube | 95 | 105 | 115 | 125 |
| Frame Head Angle | 64° | 64° | 64° | 64° |
| Frame Seat Angle | 75° | 75° | 75° | 75° |
| Frame Chainstay | 440 | 440 | 440 | 440 |
| Frame BB Drop | 45 | 45 | 45 | 45 |
| Frame Wheel Base | 1201 | 1230 | 1260 | 1284 |
| Fork Offset | ||||
| Fork Travel | 140 | 140 | 140 | 140 |
| Standover | ||||
| Stem Length | 50 | 50 | 50 | 50 |
| Handle Bar Width | 780 | 780 | 780 | 780 |
