DT Swiss 60 Tooth Hybrid DEG DF Upgrade Kit for Ratchet DEG hubs, ring nut tool included
- Free your hub and slay pedal kickback, the Hybrid DEG Degrees of Freedom kit brings new whole options for DT Swiss DEG rear hubs on EMTBs
- DF technology offers additional degrees of freedom in tuning the riding characteristics of your bike by allowing you to isolate your suspension from your drivetrain
- The influence of the chain on the rear suspension is reduced, allowing the suspension to react freely to impacts whilst reducing drivetrain noise and helping composure in the rough
- Hybrid DEG DF also gives you control over how much float you want; if you want to reduce pedal kickback then run the system with 10 degrees of float, if you prefer the feel of a standard 60 Tooth DEG hub, just set it to zero float, the choice is yours
- Unlike other anti-kickback systems that add weight and complexity, DEG DF requires no more servicing than a standard DT hub and adds no weight over a standard DEG system
- Initial installation requires a DEG ringnut tool, once installed, changing between float settings is tool free and can be done in seconds once the wheel is removed from the bike
- Available in kits with or without the ring nut tool included
- Designed for EAPC compliant E-MTB bike usage, for the standard bike version please see HBDTN6322S

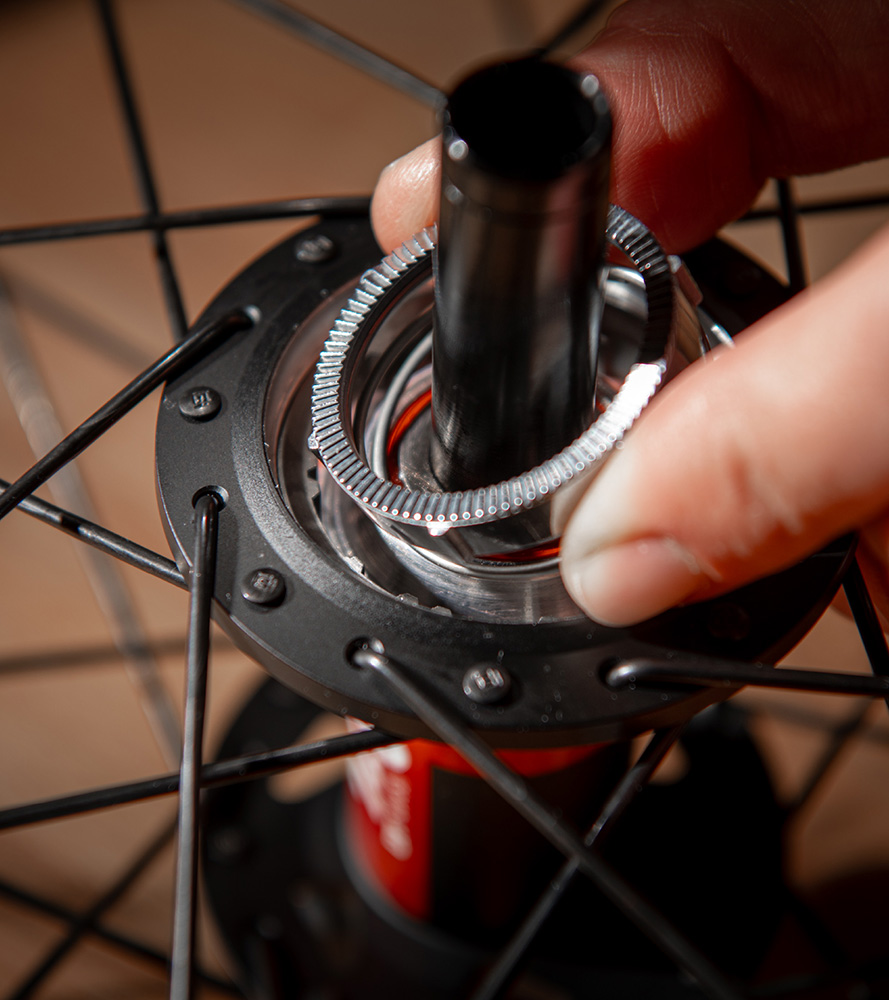

DEGREES OF FREEDOM (DF)
The new DF* technology reduces chain influence on rear suspension by allowing freehub rotation before engagement. Tool-free and low maintenance, it lets riders easily adjust bike kinematics for different terrains, optimizing suspension performance and riding characteristics without adding weight.

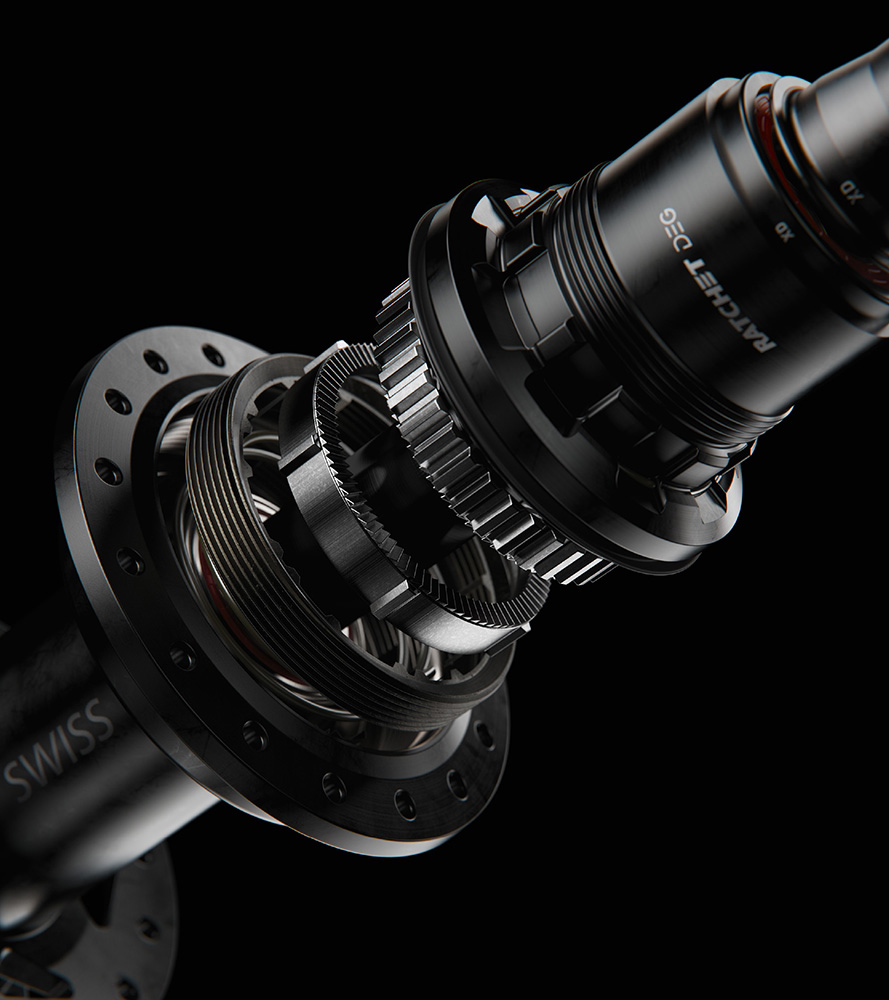

DF TECHNOLOGY FEATURES
COMPATIBILITY
The DF technology is compatible with all Ratchet DEG equipped hubs.
ADJUSTABILITY
The DF technology offers 3 setup options: 0º, 10º and 20º.
SIMPLICITY
The DF Technology works without additional parts and requires no
more maintenance than a classic Ratchet system.
HYBRID VERSION
The DF technology is also available for eMTBs in Ratchet DEG Hybrid
hubs with 0 or 10 degrees of freedom.

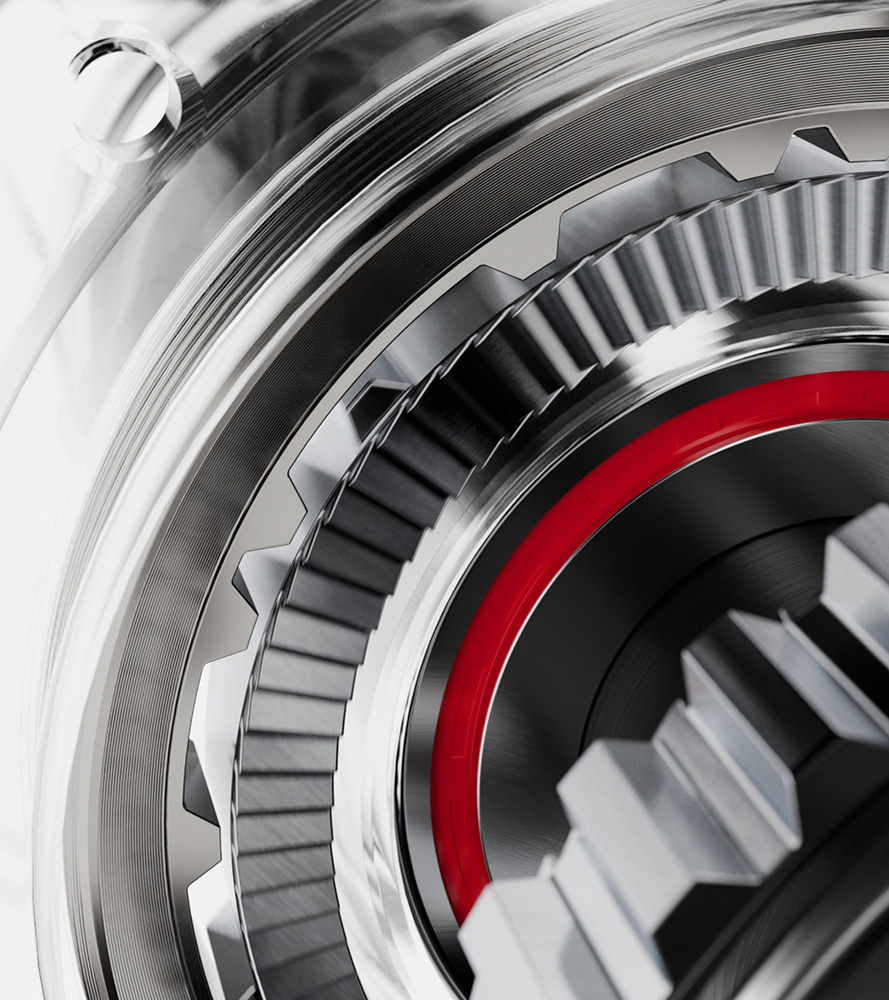

SIMPLIFIED FUNCTION
The DF system resets automatically via wheel rotation and spring pressure, needing no extra components. It allows controlled freehub movement to prevent pedal kickback while maintaining normal hub engagement. Adjustable degrees of freedom ensure smoother suspension performance and better chain management during freewheeling and pedaling.

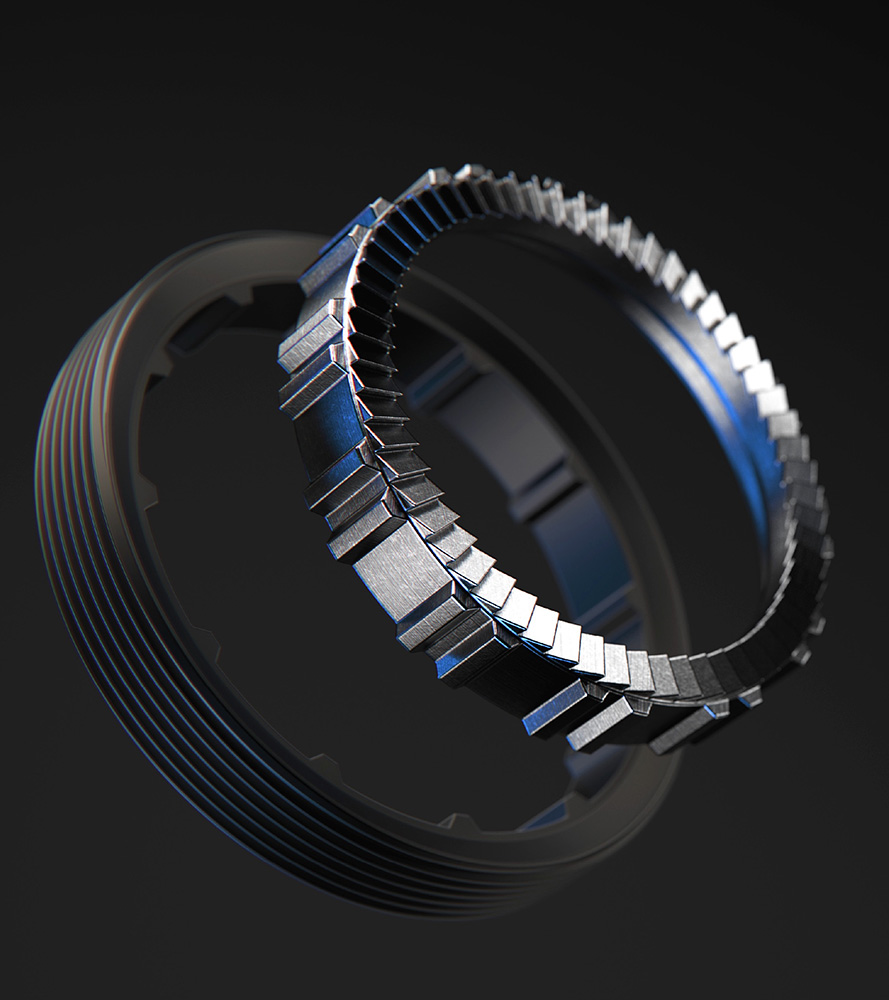

HYBRID VERSION
The new DF technology is also available for eMTBs. Due to the
higher torques in this specific field of use, the degrees of freehub
movement are 0º or 10º. The technology is available as a hybrid
upgrade kit for Ratchet DEG hubs featuring ratchets with 60 teeth.

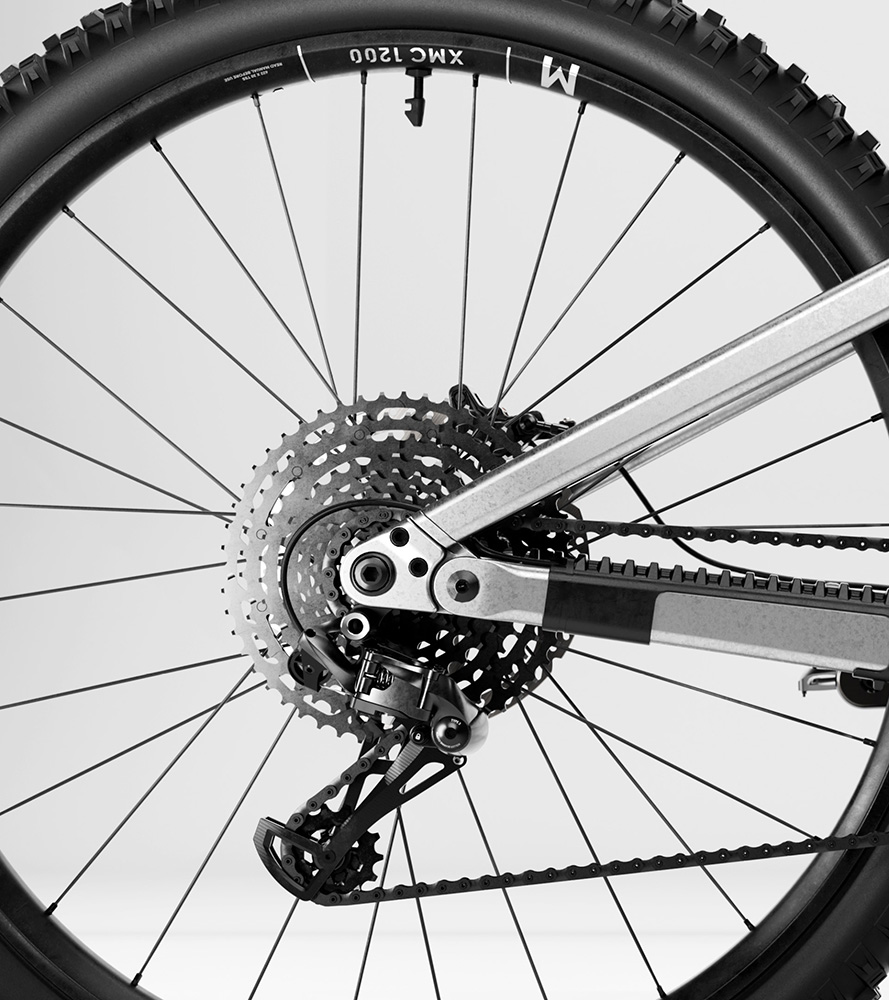

PEDAL KICKBACK EXPLAINED
WHAT HAPPENS WHEN THE REAR SUSPENSION COMPRESSES?
1. The rear shock of the bike compresses.
2. The rear wheel moves around the pivot point.
3. The distance between the bottom bracket and the rear wheel axle
changes. This would not happen if the pivot point of the rear swing
arm was exactly on the bottom bracket.
4. This causes the chain length to change, which causes the crank to
rotate backwards.
WHAT’S THE INFLUENCE ON THE SUSPENSION?
If the crank is prevented from turning, the chain tension keeps the
distance between bottom bracket and rear axle constant which in turn
prevents the swing arm from moving freely and the suspension is not
able to absorb the impact.
WORLD CUP DOWNHILL RIDER OPINION
«What I love most is how incredibly lightweight it is – it feels like it
doesn’t weigh anything. It’s super easy to maintain; you don’t have to
constantly adjust or replace things. Just a quick clean and it’s good to
go. Taking it apart or swapping the degrees is simple too.
But what really stands out is the feeling on the bike. I can feel the
difference right at my feet – that harshness is completely gone. It just
feels smooth, direct, and efficient. Honestly, I don’t think I could ever
go back to riding without it.»
ANDREAS KOLB
YT MOB
DT Swiss 60 Tooth Hybrid DEG DF Upgrade Kit for Ratchet DEG hubs, ring nut tool included
SKU
HBDTN8719S
